Twin Tuner HD + 2 Source Personal Video Recorder | 500GB HDD

The PVR10HD is a high definition digital set top box with a built-in 500GB hard disk allowing you to record many hours of high quality digital television. Two genuine HD tuners make it possible to record one or two channels simultaneously and watch a previously recorded program at the same time. It is also the first Wintal to feature the unique 2 additional source inputs, allowing you to connect external sources like DVD players, VCRs or cable TV and having the luxury of viewing and recording these sources as if they were just another television channel!
With the majority of TV channels in Australia starting to heavily broadcast in HD and with more and more devices, the PVR10HD is the simple solution for all your SD and HD digital television needs.

High definition picture and sound

• Integrated MPEG2/ H.264 HD decoder
• Watch crystal clear free-to-air television in stunning high definition
• 1080i HD output via the HDMI output
• Dolby 5.1 channel AC-3 Audio decoding // Watch your favourite shows in 5.1ch surround sound!
• Automatic downmix of 5.1ch AC3 to two channels encoded with Dolby Prologic Surround
• Get digital audio output via the optical rear port to connect to your AV receiver

Record two channels simultaneously

• The PVR10HD's genuine twin tuners allow you to record2 shows simultaneously and also watch a third pre-recorded program or a third live sub-channel (ABC2, SBS2 etc.)

Record to built-in 500GB SATA hard drive or external USBdrives

• Record and store a massive 350 hours SD or 115 hoursHD digital television on the in-built hard drive*
  Based on 1.3gbps for SD streams and 3-4gbps for HD streams
• Faster buffering and operating times compared to larger hard drives
• Record to any FAT32 formatted external drive via thefront or rear USB ports
• Export and share your recordings via the front or rear USB ports. Simply plugin your external drive and copy your files over!

2x External AV source record

• Two rear AV inputs allow you to hook up any external AV source.
• View directly from the channel list or record to the internal hard drive or external hard drive

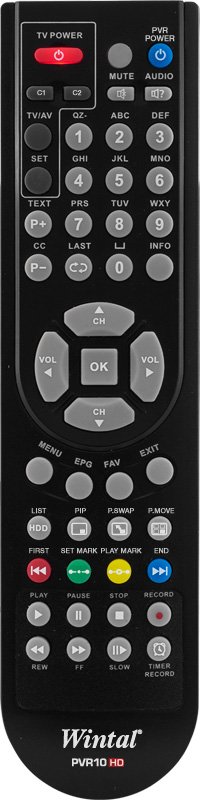

IR Learning remote control

Wintal's One Remote // No extra remote controls

• The PVR10HD remote has four "learning" keys that can mimic IR commands from your other devices. For example, you can turn on your TV and using the Custom 1 (C1)and Custom 2 (C2) buttons, adjust the volume from your AV receiver using the PVR10HD remote.
• The Wintal free support number is also on the back of every remote control, meaning we'll be close at hand if you run into trouble!

Front and rear USB2.0 ports

• Playback your MP3 audio files and JPG slideshows from your mp3 player, camera, recorder etc.
• USB2.0 host connectivity

Low power consumption

• The PVR10HD is MEPS (Minimum Energy Performance Standards) compliant, meaning it consumes less than 1 watt of power during stand-by
• 12 V DC external power supply keeps the PVR10HD running cool

Features

• 1080i HDMI Output
  The high definition multimedia interface output allows a single cable to transmit the highest digital audio and video to your TV, AV receiver, or any other HDMI enableddevice.
• PVR features:
  • Time-shifting
    The PVR10HD has a built-in timeshift bufferof one hour allowing you to pause, rewind and playback live tv.
  • Chase Play
    Allows you to start watching a recording that is already in progress without having to wait for the program to finish recording in order to watch it.
  • Time Slip
    Allows you to play a previously recorded program while simultaneously recording a live broadcast.
  • 7 day EPG Schedule recordings // Electronic Programme Guide
    Set and forget: schedule your favourite TV shows for once, daily, or weekly recordings and see up to 7 days of upcoming programs and view more information on the current program.
• PIP // Picture-in-Picture
  Watch one channel while keeping an eye out on another channel.
• Future Proof // Rear Ethernet port that will receive MHEG-5 broadcasts once it becomes available in Australia make your PVR10HD as future proof as possible. MHEG-5 provides interactive/hybrid services beyond broadcast TV and also allows for EPG data to be transmitted via the internet.
• 4:3 standard or 16:9 widescreen display options
• Easy to use
  • The software on the PVR10HD has been developed with ease of use in mind. All options and menu items have been laid out logically and conveniently.
  • The auto-setup wizard automatically scans for all available channels
• Channel edit functions:
  • Supports up to 5000 channels
  • Fast channel change
  • 8 favourites channel lists
  • Move, delete, lock channel functions
• Teletext/ Closed captions
• 32bit OSD (On Screen Display)
• Software upgradeable via RS-232

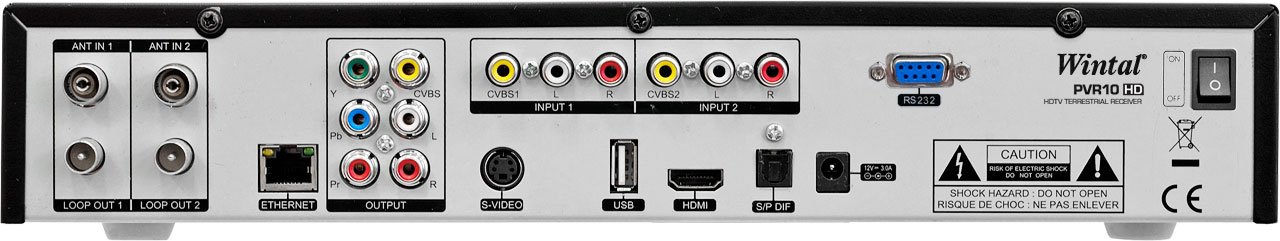

Connections:

Outputs:

• • High definition outputs
    • 1x HDMI (1080i/ 720p/ 576p)
    • 1x Component (YPbPr) (1080i/ 7520p/ 576p)
  • S-Video out
  • Composite AV Out
  • 2x RF out (Loop out)
  • S/PDIF optical out
• Inputs:
  • 2x RF in
  • 2x Composite AV inputs for two external sources
  • 9-pin RS-232 in (for software upgrades)
  • RJ45 ethernet port
  • Front - USB2.0 port
  • Rear - USB2.0 port

Accessories

• 1 x User Manual
• 1x stereo AV lead
• 1 x Remote Control Unit
• 2 x AAA Batteries
• 1 x RF Male to RF Female Cross Cable
• 12 month warranty

Specifications:

*Recording times are estimates and will greatly vary depending on content
